Stop Putting Your Team in the Danger Zone Just to Read a Pressure Gauge.
SafeGauge's Australian-made Wireless Pressure Transducer lets your technicians test hydraulic and pneumatic systems from up to 100m away, supporting WHS compliance and your site's live work elimination standards.
Get a Quote
Tell us about your operation and we'll recommend the right kit.
See SafeGauge in action on Australian mine sites.
Trusted by technicians, diesel mechanics and fitters across Australia
The SafeGauge Advantage
Why Mining Teams Choose SafeGauge
Eliminate Live Work
Your technicians stay 100 metres from the machine, fully outside the danger zone. SafeGauge supports your WHS compliance. Removes technicians from fluid injection zones and supports your site's safety obligations.
Test Faster, Log Digitally
Test up to 12 channels at once. Replace 5-metre hose runs with quick-connect sensors. Digital readings replace handwritten paper logs and data helps your team to implement predictive maintenance programmes.
Australian-Made & Proven Tough
Built for the harshest conditions on earth. 100-metre Bluetooth range. 30-hour battery. 0.2% full scale accuracy. 5+ years proven in Australian mining.
Interface Demo
MultiTool Pro interface
A simulated reading from the SafeGauge MultiTool Pro — real-time PSI across multiple channels, streamed wirelessly from the test points.
How It Works

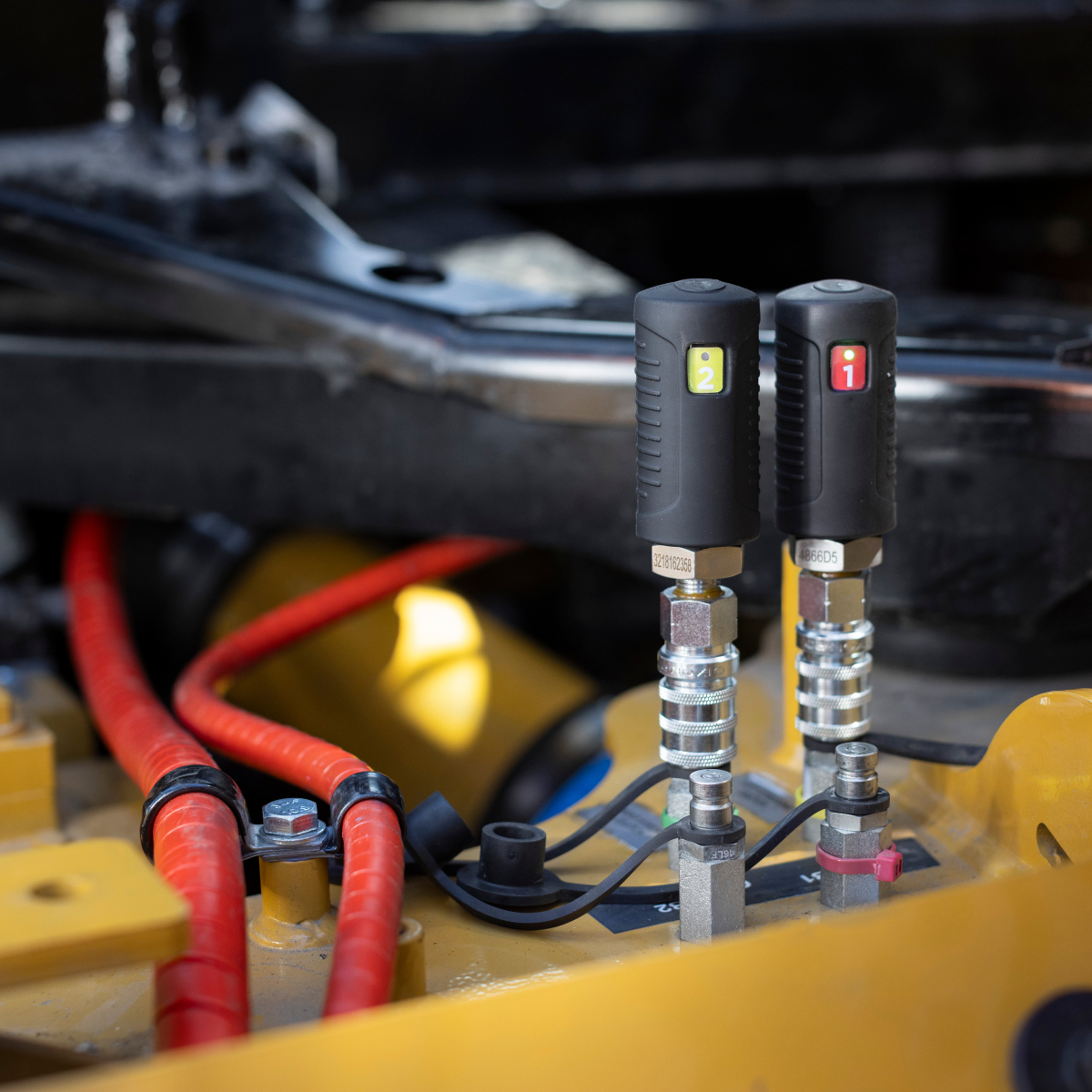

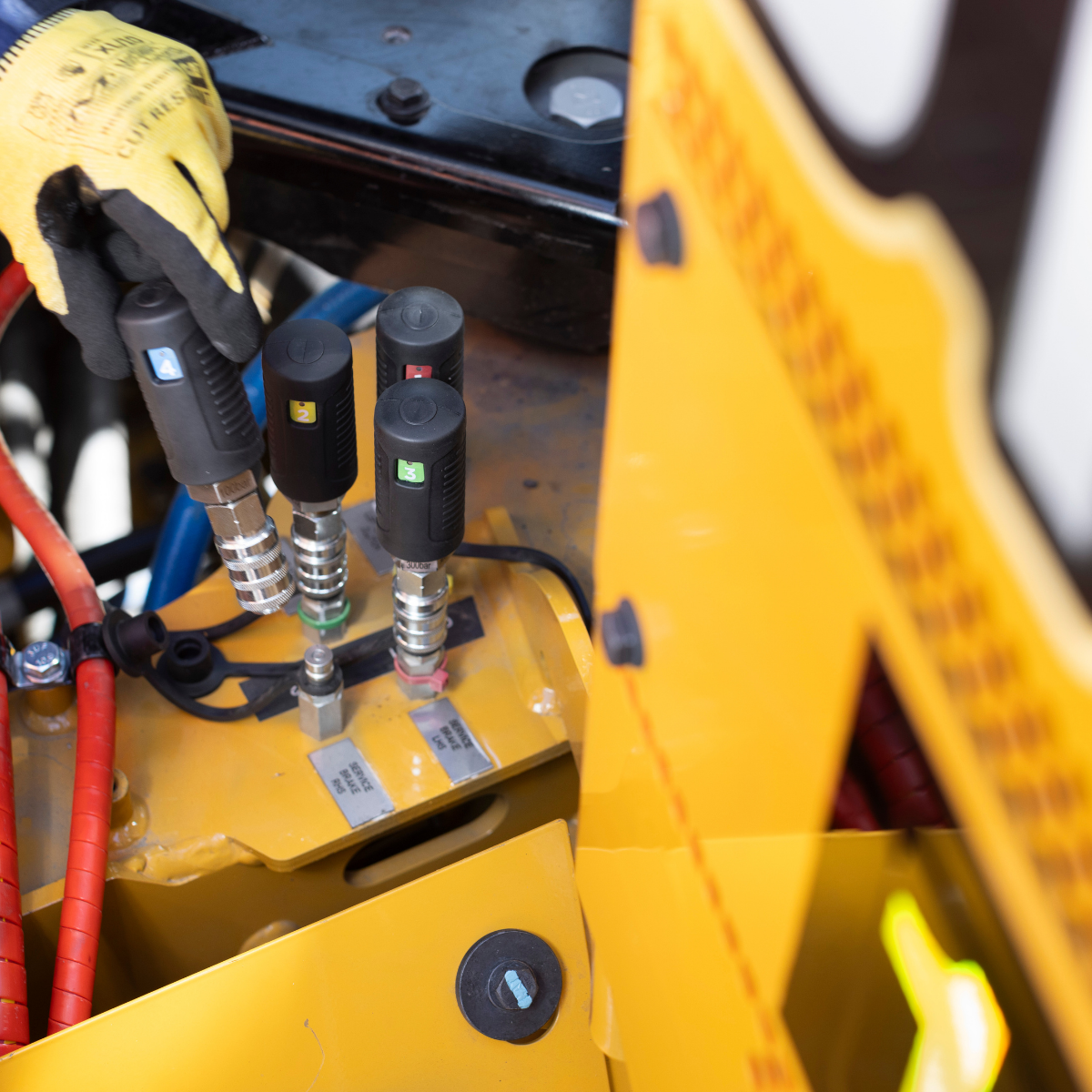

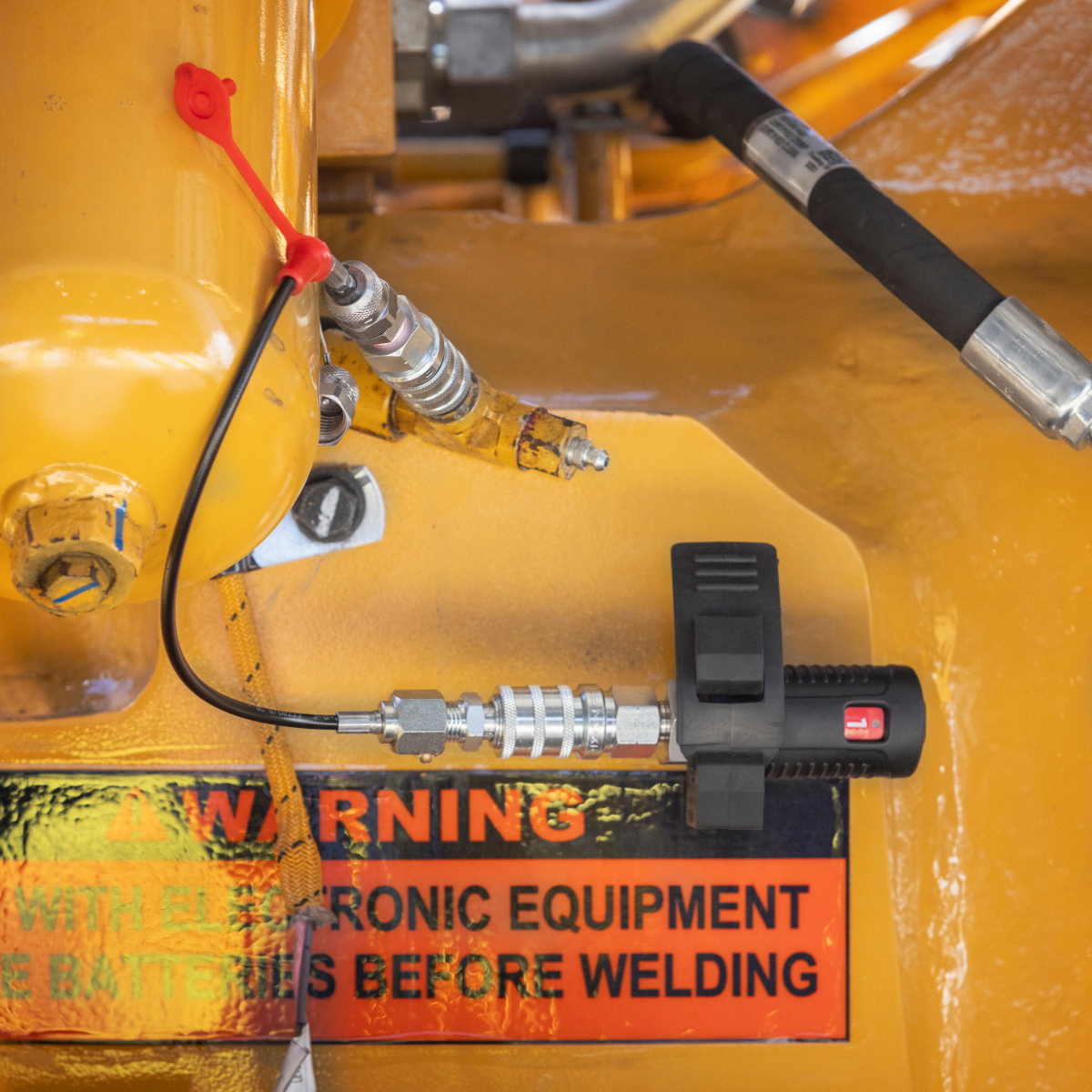

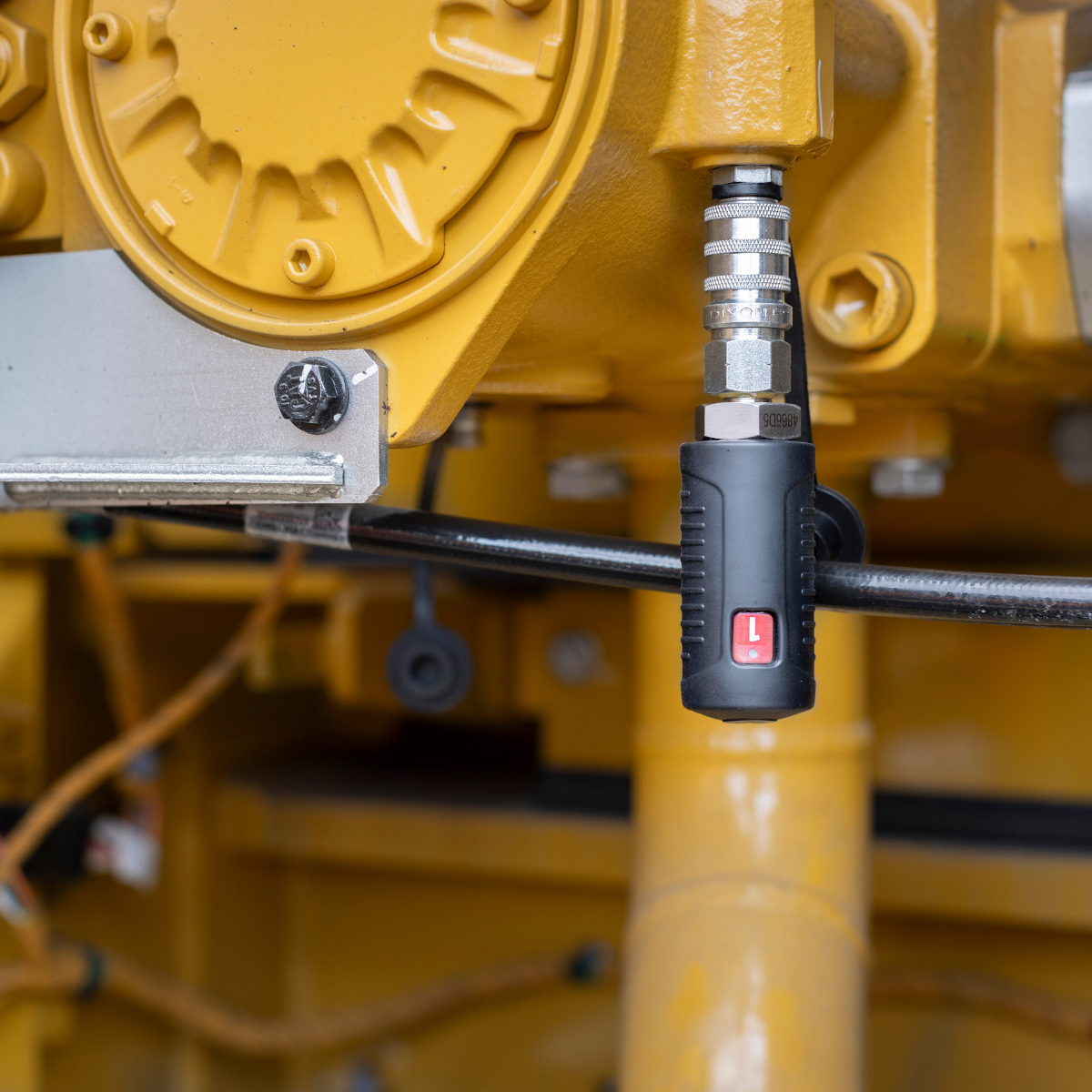

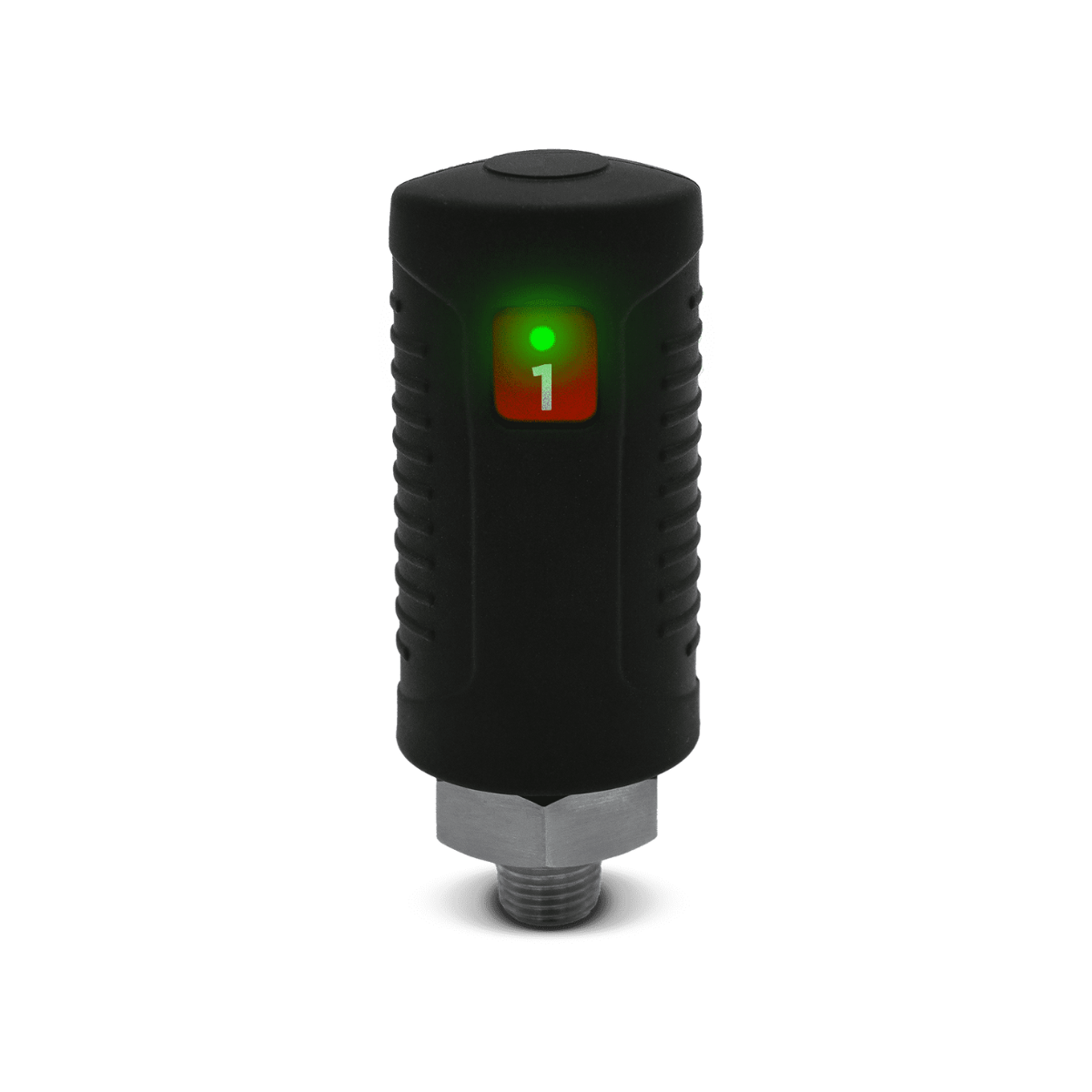

The SafeGauge Wireless Pressure Transducer connects directly onto your machine's test points via a standard 1/4" NPT adapter. Connect in seconds. Step back 100 metres. Read your results live on the MultiTool Pro tablet or the SafeGauge Mobile App.
- Connect. Step back. Test safely.
- Up to 12 channels tested simultaneously
- Live digital readings — no paper, no guesswork
- Available in 2, 4, 6, 7, 8, 10 and 12 transducer kits
Product Specifications
| Bluetooth Range | Up to 100 metres (328 ft) line of sight |
|---|---|
| Channels | 2 to 12 transducers per kit |
| Pressure Ranges | 0-5 bar / 0-25 bar / 0-100 bar / 0-300 bar / 0-600 bar (8,702 psi) |
| Accuracy | 0.2% full scale |
| Battery | Internal NiMH — 30-hour runtime, 3-hour charge, 1,000 charge cycles |
| Sample Rate | 8 readings per second |
| Build | Australian designed and manufactured |
| Connectivity | Bluetooth Low Energy (BLE) |
| Warranty | 12 months |
| Calibration | Annual calibration by SafeGauge or authorised service partners |
| Compatible Software | MultiTool Pro tablet + SafeGauge Mobile App |
| Pressure Differential | Yes — built-in calculation |
What Our Customers Say
"We have mandated SafeGauge Pressure Transducers across our entire site and banned regular pressure gauges entirely. SafeGauge products have made our maintenance procedures significantly safer by entirely removing our techs from exposure to high-risk areas. The implementation has reduced the time it takes to do our regular checks by at least 50%."
WesTrac
"This tooling has almost halved our workload during live testing and the lads love it as it is a lot more user-friendly than the previous tooling we had. Since then, we've purchased another kit after the first one we bought. We highly recommend SafeGauge to others for tooling purchases as the tooling is simple, robust, and user-friendly."
Rio Tinto
"Without SafeGauge's products, our workers would be in the line of fire with the chance of getting injured or burned. Their products allow us to get our people right out from in front of the machines."
MacKellar Group
Kits to Suit Every Operation
Available in 2 to 12 channel configurations, supplied in a rugged carry case with built-in charging.
2 Pressure Transducer Kit
2x Pressure Transducers, 1x MultiTool Pro
4 Pressure Transducer Kit
4x Pressure Transducers, 1x MultiTool Pro
6 Pressure Transducer Kit
6x Pressure Transducers, 1x MultiTool Pro
8 Pressure Transducer Kit
8x Pressure Transducers, 1x MultiTool Pro
12 Pressure Transducer Kit
12x Pressure Transducers, 1x MultiTool Pro
12 Channel Field Service Kit
7x Pressure Transducers, 1x Dial Indicator, 1x Tachometer, 2x Push Rods, 1x Inspection Camera, 1x MultiTool Pro
Over 150 configurable kit combinations available - request a quote for a tailored recommendation.
Frequently Asked Questions
DESIGNED FOR AUSTRALIAN MINING COMPLIANCE
SafeGauge Wireless Pressure Transducers support your WHS compliance obligations. Eliminate live work. Meet your obligation. Protect your people.
Ready to Eliminate Live Work on Your Site?
We regularly hear from mine sites that reach out after a safety incident. Don't wait until something happens. Get SafeGauge sorted today.
"We typically respond within 1 business day."
